Vehicle Video Camera SD4HC - Live View Mobile Video Surveillance Event Recorder System w/GPS & Wi-Fi


SD4HC Driver Safety / Passenger Security Camera

 Live View 3G Cellular, Live GPS Tracking & Wi-Fi Wireless

The SD4HC Driver safety & passenger security vehicle camera system is a video event recorder that can be incorporated as a low cost active driver training device that can help reduce dangerous driving behaviors,  reduce fleet driver risk from those dangerous driving behaviors and actively remind the drivers to abide management safe driving parameters like maximum speeds, reduction of hard turns and rapid acceleration or breaking.  In-vehicle or onboard mobile surveillance systems for vehicle applications are incorporated to provide verifiable video documentation in the areas of Driver Safety and Transit Passenger Security in case of incident or event.

The SD4HC version of the mobile video recorder offers Built in GPS  providing; vehicle speed and free On Screen Mapping during playback. In addition the SD4C has a built in Wi-Fi Wireless module with external Wi-Fi antenna for increased range, as well as Automated Data File Download CMS software included with the system at no cost.

The SD4HC version of the Driver Safety series offers Built in 3G cellular SIM card support for live video streaming, GPS  providing; live GPS tracking, vehicle speed and free On Screen Mapping during playback. In addition the SD4C has a built in Wi-Fi Wireless module with external Wi-Fi antenna for increased range, as well as Automated Data File Download CMS software included with the system at no cost.
The SD4HC Driver Safety series offers an active driver training device that can help reduce dangerous driving behaviors  reduce fleet driver risk from those dangerous driving behaviors and actively remind the drivers to abide management safe driving parameters like maximum speeds, reduction of hard turns and rapid acceleration or breaking.  Driver Behavior recording aspects of the 3-Axis accelerometer, combined with the active driver alerts provide a powerful tool for management.

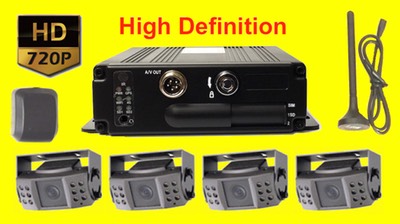

SD4HC PD system Yelow

SD4HC

Live GPS Vehicle Tracking
Live View 3G Video Streaming
Wi-Fi Automated Videos File Download
Enhanced Video File Evidence Security
512 GB Solid Twin SD State Memory Capacity

SD4HC  High Definition Hybrid & Megapixel Cameras
720P-AHD High Definition Version with 512 GB SDXC Solid State Memory Capacity, SD memory cards not included.High Definition 720P-AHD Driver Surveillance Camera Video Event Recorder System Pricing  dependent on quantity & terms, request quote for more information.

SD4HC-1 ...1-Camera Taxi / Limousine Camera, Paratransit Shuttle Bus Camera Safety System for Video Van Surveillance $1,100 - $1,200
SD4HC-2 …2-Camera Taxi / Limousine Camera, Paratransit Shuttle Bus Camera Safety System for Video Van Surveillance $1,200 - $1,300
SD4HC-3 …3-Camera Taxi / Limousine Camera, Elderly Assisted Living Paratransit Shuttle Bus Camera Safety System $1,300 - $1,400
SD4HC-4 …4-Camera Taxi / Limousine Camera, Elderly Assisted Living Paratransit Shuttle Bus Camera Safety System $1,400 - $1,500

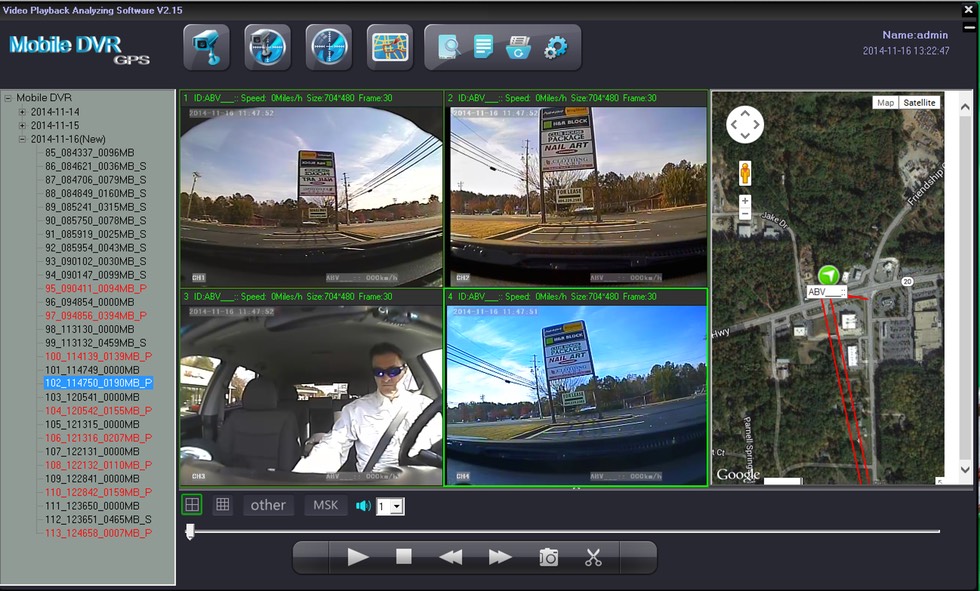

SD4D & SD4W  Gui Quad sat map, G-Sensors routing view document Dangerous Driving Behaviors, driver safety camera, passenger safety security surveillance camera systems

CMS 3G Cellular Live View vehicle video streaming surveillance with live GPS Vehicle Tracking & Live Panic Button Alerts

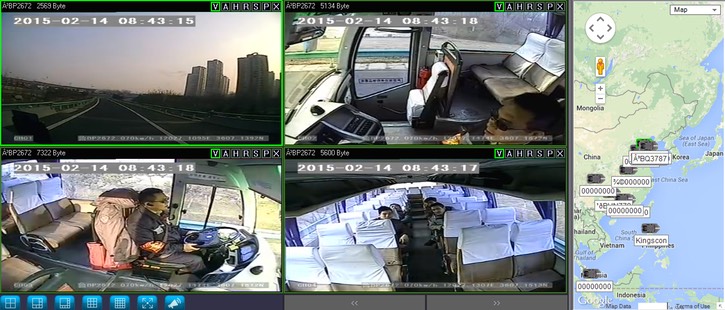

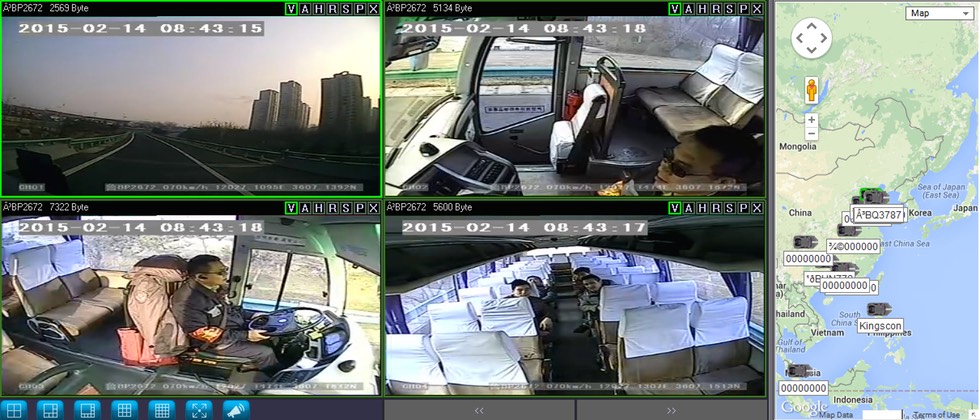

SD4C Live View 3G video streaming public transit bus surveillance camera system Quad view with map 2 copy

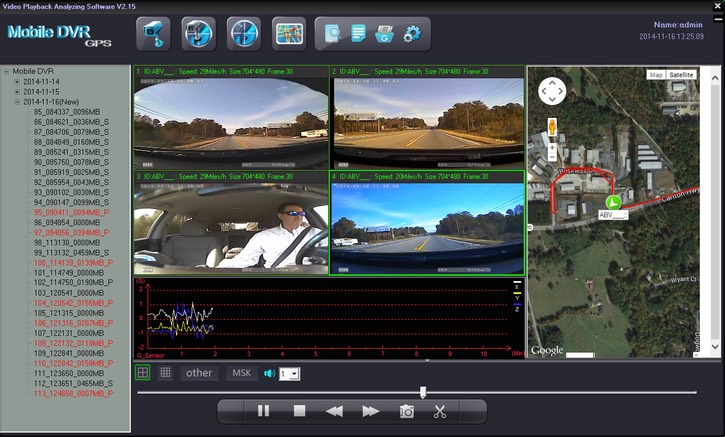

SD4D & SD4W  GUI Quad Screen Sat Map viewlow cost Pupil transportation child safety and security onboard vehicle video camera observation systems

SD4C Live View  Remote CMS Screenshot Photo Gallery


Please specify the collection to use for the album.


All cellular based features of all 3G/4G Cellular based products offered by ABV,  require a customer supplied SIM card, customer sourced ISP Data plan, as well as customer Network Systems Administrator for DVR programming,CMS Server setup and Server operation see "NETWORK SYSTEM ADMINISTRATOR” in Terms of Use for more information.




Choice of Cameras with above systems:


PD-A Camera

Named as such due to widespread application in police cars for recording of interior car activities. High Definition 720P-AHD with a very wide angle 2.5 mm lens that provides an exceptional wide Field of view. The built in audio is very clear and the light sensor automatically switches the camera from color in normal ambient light to Night Vision via IR LEDS in low light environments. The heavy duty metal shell provides a much longer service life than the cheap plastic camera cases polluting the market.


BTC-A or Black Turret Camera

This camera is generically a dome camera with widespread application in school buses for recording of interior bus activities while protecting the camera with a metal vandal resistant shell. Vandal resistant qualities include built in microphone, metal shell or casing, metal shoulder and metal base for a very durable camera. Steel adjustment set screws provided making it rock solid when locked down and much less likely to be bumped out of adjustment during hostile assaults by children or in some cases prisoners as we have offered this camera to several prisoner transport services with zero complaints or damage to date. High Definition 720P-AHD with a very wide angle 2.5 mm for rear of school bus or stairwell / driver camera offering an exceptional Field of View  for all other applications in a large vehicle like school bus front camera, school bus middle camera, transit bus or train. Built in audio recording, with customer adjustable gain on audio amplifier, light sensor automatically switches the camera from color in normal ambient light to Night Vision via IR LEDS in low light environments.

ExCAM-A  Exterior  Side & Rear Turret  Camera

ExCAM-A is a weatherized IP67 rated vandal resistant‚ auto activating, infrared camera that can easily adjust to point in almost any direction‚ without need to disassemble the camera housing or worry about back reflection from the IR illuminators. It is the size and shape of a very small dome camera‚ but its versatile “turret” style system allows for faster installs and easier adjustments. ExCAM-A permits quick adaptation for Side vehicle camera with horizon leveling for proper image view, or conventional horizontal image for proper video playback from Side View camera applications. High Definition 720P-AHD with a choice of 2 lenses for different applications in a vehicle: very wide angle 2.1 mm for rear view, or 12mm for Stop Arm Camera application on school buses or other applications concerned with capture of license plates on passing cars. A Rear Vision version is availabel with Mirror image to be used as a backup camera.


PD2-A Camera (Optional)

Dual Lens version of the above PD camera, for use as a Forward Road facing camera, and Driver camera in a single unit. Forward Road Facing camera has 3.6mm lens, IR LEDs disabled to prevent “ghosting” when the IR light is reflected back into the lens and creates a fog-like refraction that degrades image clarity. Sun Shield included for use in the forward facing lens to block unwanted sun that can cause glare in the early morning or late afternoon.

High Definition 720P-AHD, with Driver facing very wide angle 2.5 mm lens that provides an exceptional wide Field of view. The built in audio on the Driver Facing camera is very clear and the light sensor automatically switches the camera from color in normal ambient light to Night Vision via IR LEDS in low light environments. The heavy duty metal shell provides a much longer service life than the cheap plastic camera cases polluting the market.



What Dangerous Driving Behaviors Look Like

(Before they cause an accident, to prevent loss of life and property)

Dangerous Driving Behaviors include:

High Speed Turns
Hard Braking & Tailgating
Racing & Rapid Accelerations
Impact to Vehicle, Object or Crash
Distracted Driving & Texting While Driving
Erratic Lane Changes & Inability to Maintain Lane


Download What Dangerous Driving Looks Like PDF
