SD4FHW 1080P - Mobile Video Vehicle Surveillance Recorder w/GPS & Wi-Fi



Stop : Caution Bar High Res Black


Driver Safety & Passenger Security Vehicle Camera
1080P  w/Automated Data Download via Wi-Fi

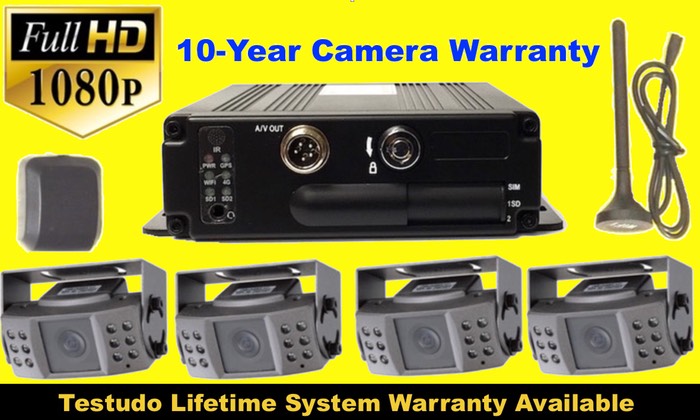

SD4FHW w:PD cams on Yellow

SD4FHW


SD4FHW  Vehicle  Camera System Features:

  • High Definition Low Cost Onboard Vehicle Video Surveillance Solution
  • GPS Vehicle Speed & On Screen Mapping included
  • Wi-Fi Automated Videos File Download
  • 512 GB  Twin SD Card Bays for 100% Solid State Memory Capacity
  • 4-channel School Bus Video DVR accepts 4  cameras with audio
  • Mosaic "Blurring" software to help protect non involved passengers
  • Built in 3-axis Accelerometer, Crash trigger & G-Sensor Charting
  • Remote DVR Status LED Indicator  (option)
  • 1080P-AHD  High Definition 1920 x 1080 TVL & H.264 compression
  • “AHD” DVRs were designed to function with new Megapixel & older CCTV Analog cameras with standard connections
  • 10-Year Camera Warranty on every High Definition 720P & 1080P Camera
  • “Testudo Lifetime Warranty Protection” (Option Available)


SD4FHW GPS & Wi-Fi System Pricing:


SD4FHW-1...1-Camera Driver Safety Driver Training Solution for Mobile Video Vehicle Surveillance Camera  $800 - $950


SD4FHW-2 …2-Camera Driver Safety Driver Training Solution for Mobile Video Vehicle Surveillance Camera $900 - $1,050


SD4FHW-3 …3-Camera Vehicle Passenger Expert Video Witness Non-Biased Sequential Liability Litigation $1,000 -$1,150


SD4FHW-4 …4-Camera Vehicle Passenger Expert Video Witness Non-Biased Sequential Liability Litigation $1,100 - $1,250


Reseller Pricing Available



All actual images are High Definition Full HD 1080p 1920x1080. Sample High Definition images.

High Definition  12mm  2 Megapixel License Plate Capture Camera from a distance of approximately  30 feet screenshot. The above is a low resolution image. All actual images are High Definition Full HD 1080p 1920x1080. Sample High Definition images.

High Definition  2.8mm 2 Megapixel Driver Safety Camera screenshot. The above is a low resolution image. All actual images are High Definition Full HD 1080p 1920x1080.

High Definition  2 Megapixel Driver Safety Vehicle Video Surveillance Camera  with GPS route tracing screenshot. The above is a low resolution image. All actual images are High Definition Full HD 1080p 1920x1080.

High Definition  12mm 2 Megapixel License Plate Capture Camera from a distance of approximately  30 feet screenshot. The above is a low resolution image. All actual images are High Definition Full HD 1080p 1920x1080.

High Definition  2.8mm 2 Megapixel Forward Road Camera screenshot. The above is a low resolution image.
All actual images are High Definition Full HD 1080p 1920x1080.



1080P Camera Choices


BTC-AF  aka Black Turret Camera

This camera is generically a dome camera with widespread application in school buses for recording of interior bus activities while protecting the camera with a metal vandal resistant shell. Vandal resistant qualities include built in microphone, metal shell or casing, metal shoulder and metal base for a very durable camera. Steel adjustment set screws provided making it rock solid when locked down and much less likely to be bumped out of adjustment during hostile assaults by children or in some cases prisoners as we have offered this camera to several prisoner transport services with zero complaints or damage to date. Full HD 1080p High Definition 1920x1080 2 Megapixel image quality with very wide angle 2.8 mm lens for front, rear of school bus, stairwell, driver camera offering an exceptional Field of View for interior applications in a large vehicle like school bus front camera, school bus middle camera, transit bus or train. Built in audio recording, with customer adjustable gain on audio amplifier, light sensor automatically switches the camera from color in normal ambient light to Night Vision via IR LEDS in low light environments.  10-Year Warranty Standard on all HD cameras.


SAC-AF  aka Stop Arm Camera

This camera is for exterior applications where the customer is looking to capture images of vehicle license plates passing stopped buses in violation of Stop Arm laws regarding traffic behind or in front of school buses loading and unloading children with Stop Arm Stop Sign extended to stop traffic to help proterct children entering and exiting the school bus. Full HD 1080p High Definition 1920x1080 2 Megapixel image quality with very tight angle 12 mm lens offering an exceptional depth of field view for vehicles passing from the front or the rear. Best if used with dual camera solutions for one SAC-AF facing forward and one SAC-AF facing rear to captuire the drivers face and rear vehbicle license plate at the same time.  Light sensor automatically switches the camera from color in normal ambient light to Night Vision via IR LEDS in low light environments. 10-Year Warranty Standard on all HD cameras.

Free School Bus Stop Arm Violation Camera Upgrade.



Note: The SD4FH 1080P series DVRs can use any of the 720P-AHD cameras

CC-AF Ceiling Camera 360-degree Fisheye
Child Safety Ceiling Camera

Child Safety Ceiling Fisheye camera for use on the ceiling of a vehicle with polymer case with rounded edges and low profile stature that makes it less intrusive into the passenger compartment of a vehicle.  High Definition 1280x720 TVL  1MP  with a very wide angle 1.7 mm Fisheye lens that provides an exceptional wide 170-degree Field of View. The built in audio is very clear and the light sensor automatically switches the camera from color in normal ambient light to Night Vision via IR LEDS in low light environments. Those who require vandal resistant metal case should choose the BTC-A cameras listed below.
10-Year Warranty Standard on all HD cameras.

ExCAM-A Exterior  Side & Rear Turret  Camera

ExCAM-A is a weather proof IP67 rated vandal resistant‚ auto activating, infrared camera that can easily adjust to point in almost any direction‚ without need to disassemble the camera housing or worry about back reflection from the IR illuminators. It is the size and shape of a very small dome camera‚ but its versatile “turret” style system allows for faster installs and easier adjustments. ExCAM-A permits quick adaptation for Side vehicle camera with horizon leveling for proper image view, or conventional horizontal image for proper video playback from Side View camera applications. High Definition 1280x720 TVL  1MP camera. 10-Year Warranty Standard on all HD cameras.

PD-A Camera High Definition 720P-AHD
Named as such due to widespread application in police cars for recording of interior car activities. High Definition 1280x720 TVL  1MP  with a very wide angle 2.5 mm lens that provides an exceptional wide Field of view. The built in audio is very clear and the light sensor automatically switches the camera from color in normal ambient light to Night Vision via IR LEDS in low light environments. The heavy duty metal shell provides a much longer service life than the cheap plastic camera cases polluting the market. 10-Year Warranty Standard on all HD cameras.

High Definition Mobile Video Solutions Overview




What Dangerous Driving "Looks Like"

(Before they cause an accident, to prevent loss of life and property)

Dangerous Driving Behaviors:

High Speed Turns
Hard Braking & Tailgating
Racing & Rapid Accelerations
Impact to Vehicle, Object or Crash
Distracted Driving & Texting While Driving
Erratic Lane Changes & Inability to Maintain Lane


Download "Dangerous Driving" PDF
