Commercial Vehicle Camera System for High Definition Vehicle Security Event Recorder Video Surveillance


Commercial Vehicle Camera System for Vehicle Security Event Recorder Video Surveillance

Commercial transportation passenger in-vehicle mobile video surveillance systems provide a proven mechanism to document passenger and driver activities in a commercial Video Event Data Recorder  (VEDR) or black box, employing multi in-vehicle cameras in locations throughout the heavy duty commercial bus or truck. Video evidence gathered from these commercial grade multi-camera Video Event Recorders can be used to provide sequential expert witness of the events or activities without bias or prejudice from the digital onboard mobile video recorder system.

Transportation companies have incorporated two types of in-truck multi-camera devices;  Video Event Data Recorders, that just capture a few seconds of video when an event occurs, as well as the Commercial Video Trip Recorder (TVR) for complete multiple camera sequential documentation of the entire trip.
The commercial  grade heavy duty SD4FH can function as both Event Only or onboard Video Trip Recorder, to provide a commercial grade vehicle multi camera recording system in full HD1080p High Definition more than 4 times higher image quality than the industry standard D1 resolution.

Where the SD4FH transportation video event recorder is particularly well suited, is those applications calling for much higher resolution than the industry standard D1 4-channel DVRs can support like; Semi Truck Forward Facing road cameras, Stop Arm cameras for school bus, Car License Plate Capture cameras and Bus Bully Child Assault cameras as they require much higher resolution in order to provide usable video evidence of a Criminal offense or juvenile assault incident.  Built in Driver Behavior recording aspects of the 3-Axis accelerometer, combined with the active driver alerts provide a mechanism to help reduce dangerous driving behaviors. Built in GPS  module, Remote Driver DVR Status Indicator and massive 512GB 100% Solid State memory storage capacity in this all in one multi-camera commercial digital video recording system.


Commercial Transportation Security Vehicle Observation Camera

High Definition Full HD 1080P Dangerous Driver Charting G-Sensor

SD4FHD
Driver Safety Vehicle Video Camera Surveillance Observation System

  • Full High Definition Low Cost Driver Safety Vehicle Video Surveillance Solution
  • 512 GB  Twin SD Card Bays for 100% Solid State Memory Capacity
  • 4-channel School Bus Video DVR accepts 4 Megapixel IR Night Vision cameras with built in audio
  • Mosaic "Blurring" software to help protect non involved passengers during video presentation
  • Built in 3-axis Accelerometer, Crash trigger & G-Sensor Charting
  • Remote DVR Status LED Indicator  (option) permits driver to know if the system if fully functional
  • 1080P-AHD  High Definition 1920 x 1080 TVL & H.264 compression permits longer onboard memory storage files
  • Locking Dual SD card Bay door helps protect access to files
  • “AHD” DVRs were designed to function with new Megapixel & older CCTV Analog cameras with standard connections
  • 10-Year Camera Warranty on every High Definition 720P & 1080P Camera

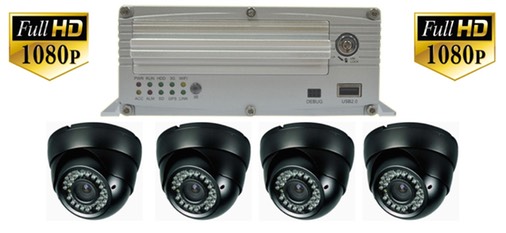

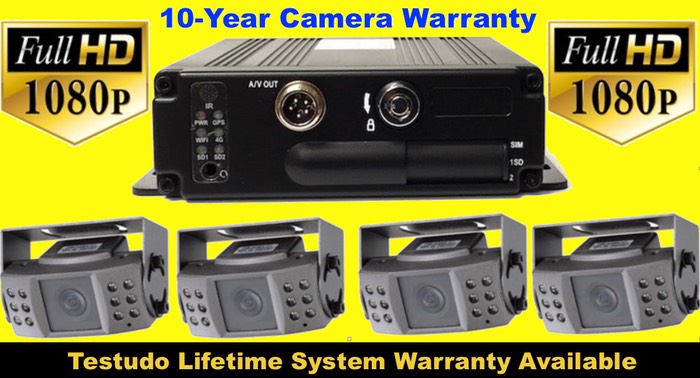

High Definition Hybrid 1080P-AHD (1920x1080) - Bus Video Surveillance Camera System Megapixel Cameras, Solid State SD4FHD Bus Video DVR with power & A/V/P Cable adapter,  locking SD card Bay, built in 3-Axis Accelerometer (G-Sensor) SD memory card not included. Pricing dependent on quantity & terms, request quote for more information.
SD4FHD-1 ...1-Camera Commercial Transportation Video Recorder Onboard In-Vehicle Surveillance Camera System $700 - $850
SD4FHD-2 …2-Camera Commercial Transportation Video Recorder Onboard In-Vehicle Surveillance Camera System $800 - $950
SD4FHD-3 …3-Camera  High Definition Commercial Transportation Video Recorder In-Vehicle Surveillance Camera  $900 - $1,050
SD4FHD-4 …4-Camera High Definition Commercial Transportation Video Recorder In-Vehicle Surveillance Camera $1,000 - $1,150
STOP ARM Violation Cameras - High Definition 1080P-AHD School Bus Stop Arm Violation Camera No Additional Cost
Reseller Pricing Available Click Here


SD4FHD sample Screenshots in Low-Resolution to speed up page loading.

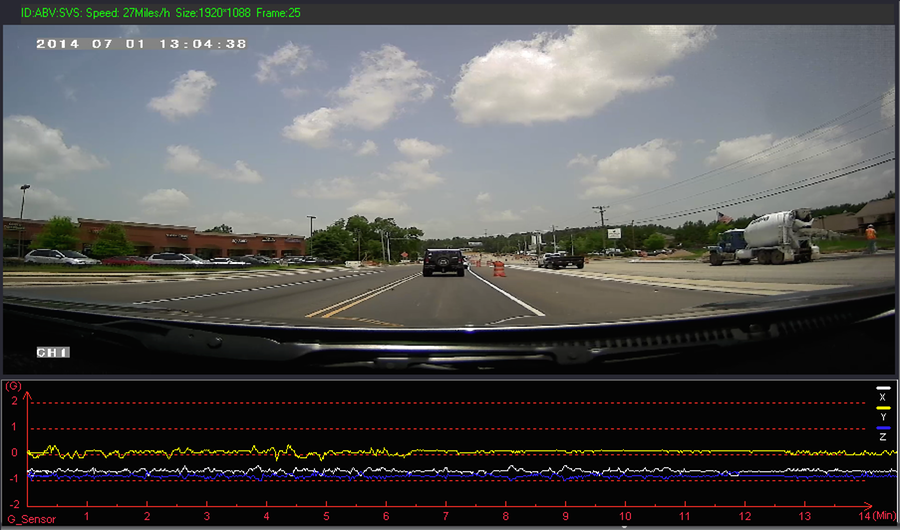

Low resolution GUI screenshot, actual images in High Definition Full HD 1080p 1920x1080  1 cropped

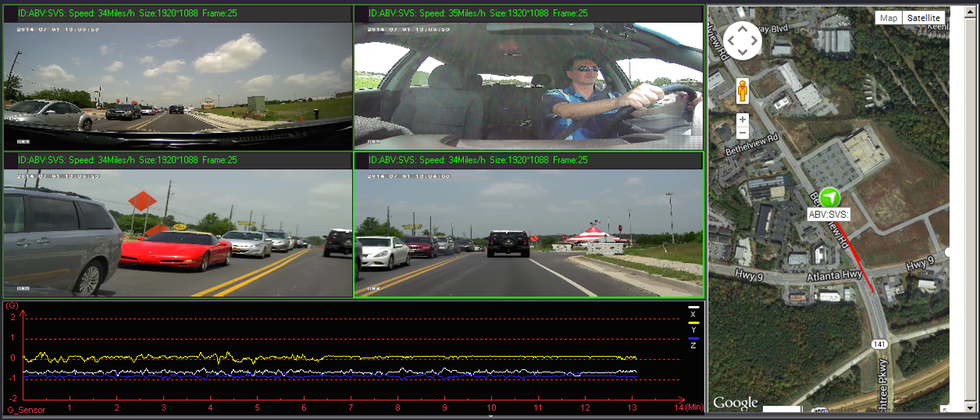

Quad view with G sensor & satellite mapping screenshot. The above is a low resolution image to speed up page loading.
All actual images are High Definition Full HD 1080p 1920x1080. Click here for samples of the High Definition images.

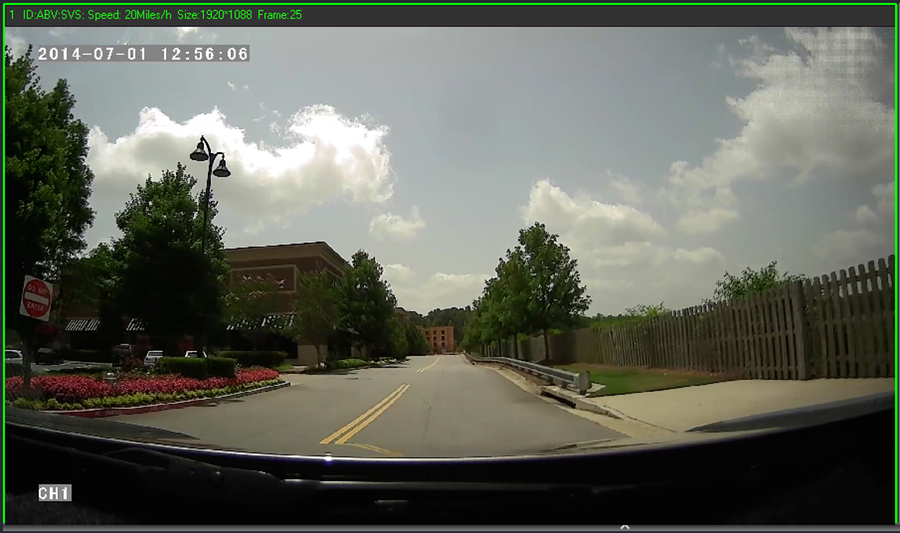

FHD4 Forward Facing Road Camera 2.8mm

High Definition  2.8mm  2 Megapixel Forward Road Camera screenshot. The above is a low resolution image.
All actual images are High Definition Full HD 1080p 1920x1080. Click here for samples of the High Definition images.

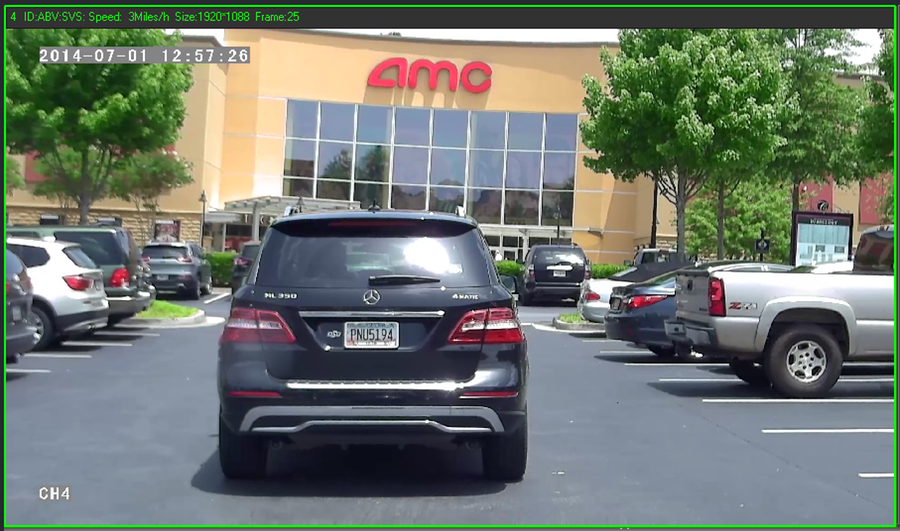

Stop Arm Camera Forward Facing 1

High Definition  12mm  2 Megapixel License Plate Capture Camera from a distance of approximately  30 feet screenshot. The above is a low resolution image. All actual images are High Definition Full HD 1080p 1920x1080. Click here for samples of the High Definition images.

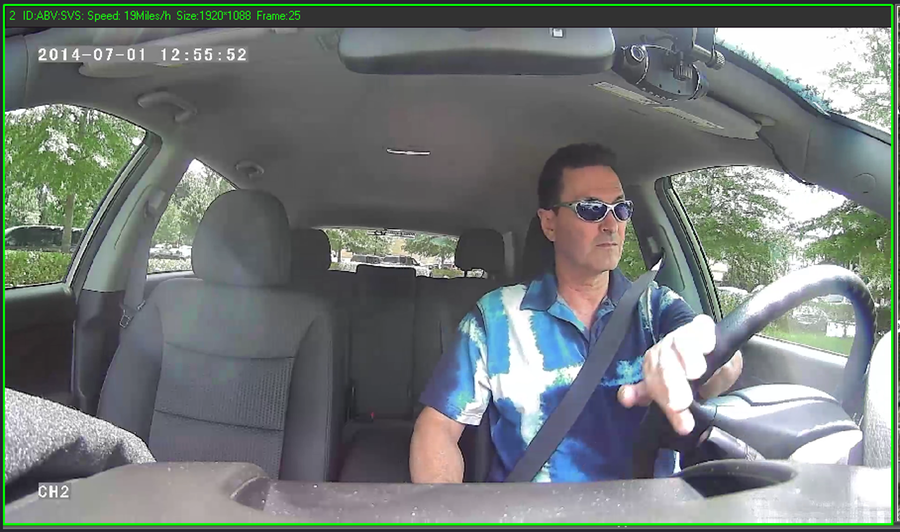

FHD4 Driver Camera low resolution image, actual images in High Definition Full HD 1080p 1920x1080

High Definition  2.8mm 2 Megapixel Driver Safety Camera screenshot. The above is a low resolution image. All actual images are High Definition Full HD 1080p 1920x1080. Click here for samples of the High Definition images.

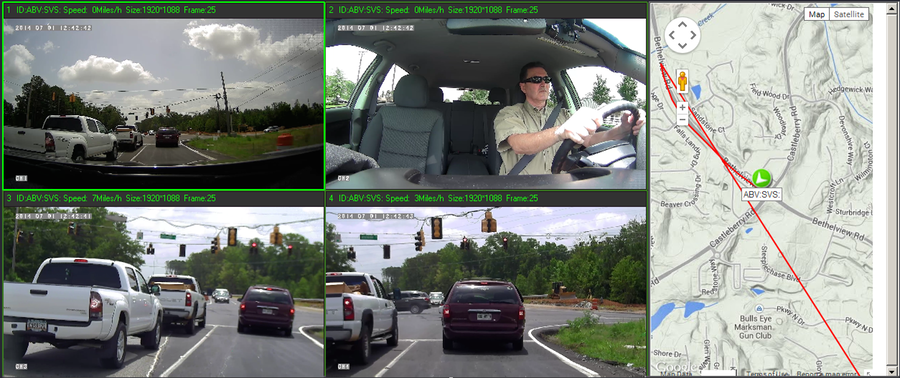

FHD4 High Definition 1080p Mobile Video Driver Safety Passenger Surveillance License Plate Capture with 4-Cam, GPS, Street Mapping

High Definition commercial in-truck video camera system  2 Megapixel Driver Safety Vehicle Video Surveillance Camera with GPS route tracing screenshot.  All in one commercial transportation video event recorder system can provide an in-vehicle black box video event data recorder with multiple cameras for full vehicle coverage.  The above is a low resolution image. All actual images are High Definition Full HD 1080p 1920x1080. Click here for samples of the High Definition images.

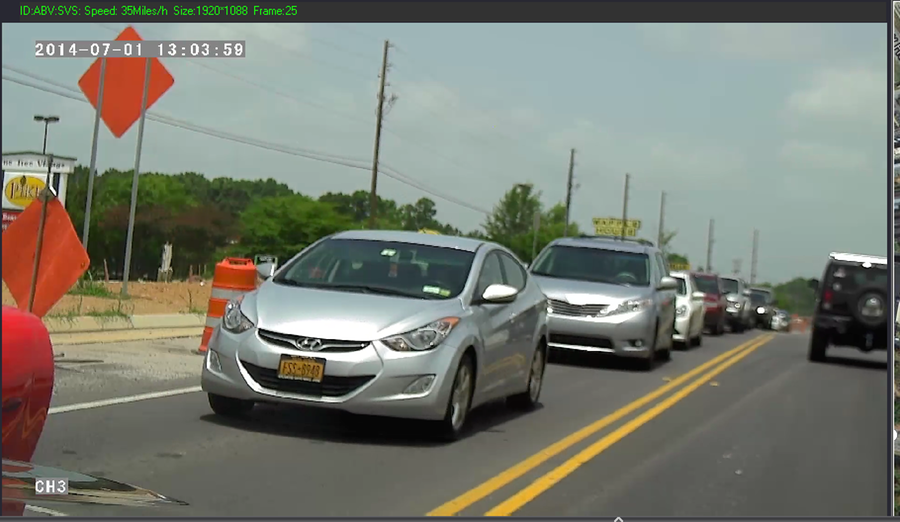

FHD4 Stop Arm Camera Forward Facing low resolution image, actual images in High Definition Full HD 1080p 1920x1080

High Definition 12mm  2 Megapixel License Plate Capture Camera from a distance of approximately 30 feet screenshot. Transportation in-vehicle recorders with multi camera capabilities can satisfy the needs of most commercial heavy duty trucking applications that are seeking to better document driver risk activities. The above is a low resolution image. All actual images are High Definition Full HD 1080p 1920x1080. Click here for samples of the High Definition images.

Low resolution GUI screenshot, actual images in High Definition Full HD 1080p 1920x1080  2 copy

High Definition 2.8mm  2 Megapixel Forward Road Camera screenshot. The above is a low resolution image.
All actual images are High Definition Full HD 1080p 1920x1080. Click here for samples of the High Definition images.


Commercial Passenger Transportation Multi Camera Vehicle Observation
High Definition Full HD 1080P  w/
Automated Data Download via Wi-Fi Driver Safety & Passenger Security Vehicle Observation Camera

SD4FHW
Digital HD Witness Video Observation System w/GPS & Wi-Fi

  • High Definition Low Cost Onboard Vehicle Video Surveillance Solution
  • GPS Vehicle Speed & On Screen Mapping included shows vehicle location on map during playback
  • Wi-Fi Automated Videos File Download
  • 512 GB  Twin SD Card Bays for 100% Solid State Memory Capacity
  • 4-channel School Bus Video DVR accepts 4  cameras with audio
  • Mosaic "Blurring" software to help protect non involved passengers during video presentation
  • Built in 3-axis Accelerometer, Crash trigger & G-Sensor Charting
  • Remote DVR Status LED Indicator  (option) permits driver to know if the system if fully functional
  • 1080P-AHD  High Definition 1920 x 1080 TVL & H.264 compression permits longer onboard memory storage files
  • “AHD” DVRs were designed to function with new Megapixel & older CCTV Analog cameras with standard connections
  • 10-Year Camera Warranty on every High Definition 720P & 1080P Camera

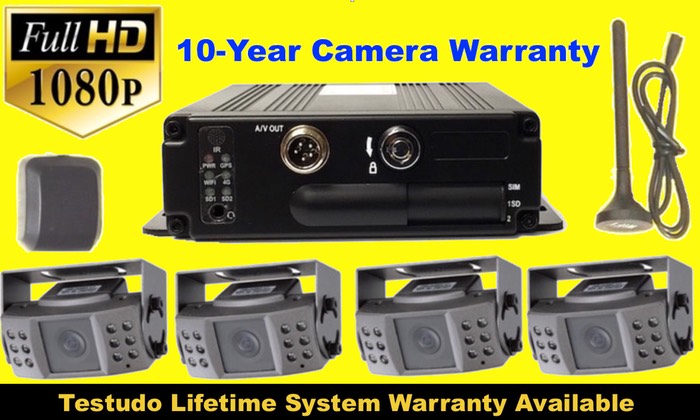

GPS & Wi-Fi - High Definition Hybrid 1080P-AHD (1920x1080)  - Bus Video Surveillance Camera System Megapixel Cameras, Solid State SD4FHW Bus Video DVR with power & A/V/P Cable adapter, I/O Triggers Display & Alarm, locking SD card Bay, built in 3-Axis Accelerometer (G-Sensor) SD memory card not included. Pricing dependent on quantity & terms, request quote for more information.
SD4FHW-1 ...1-Camera High Definition GPS & Wi-Fi Student Transit School Bus Camera Video Observation Surveillance $800 - $950
SD4FHW-2 …2-Camera High Definition GPS & Wi-Fi Student Transit School Bus Camera Video Observation Surveillance $900 - $1,050
SD4FHW-3 …3-Camera Megapixel High Definition GPS & Wi-Fi  Pupil Transportation School Bus Video Safety System  $1,000 - $1,150
SD4FHW-4 …4-Camera Megapixel High Definition GPS & Wi-Fi  Pupil Transportation School Bus Video Safety System $1,100 - $1,250
STOP ARM Violation Cameras - High Definition 1080P-AHD School Bus Stop Arm Violation Camera No Additional Cost
Reseller Pricing Available Click Here


Commercial transportation passenger in-vehicle mobile video surveillance systems provide a proven mechanism to document passenger and driver activities in a commercial Video Event Data Recorder  (VEDR) or black box, employing multi in-vehicle cameras in locations throughout the heavy duty commercial bus or truck. Video evidence gathered from these commercial grade multi-camera Video Event Recorders can be used to provide sequential expert witness of the events or activities without bias or prejudice from the digital onboard mobile video recorder system.

Transportation companies have incorporated two types of in-truck multi-camera devices;  Video Event Data Recorders, that just capture a few seconds of video when an event occurs, as well as the Commercial Video Trip Recorder (TVR) for complete multiple camera sequential documentation of the entire trip.
The commercial  grade SD4FHW can function as both Event Only or onboard Video Trip Recorder, to provide a commercial grade vehicle multi camera recording system in full HD1080p High Definition more than 4 times higher image quality than the industry standard D1 resolution.

Where the SD4FHW is particularly well suited, is those applications calling for Automated Data Download via Wi-Fi as well as much higher resolution than the industry standard D1 4-channel DVRs can support like; Forward Facing cameras, Stop Arm cameras for school bus, Car License Plate Capture cameras and Bus Bully Child Assault cameras as they require much higher resolution in order to provide usable video evidence of a Criminal offense or juvenile assault incident.  Built in Driver Behavior recording aspects of the 3-Axis accelerometer, combined with the active driver alerts provide a mechanism to help reduce dangerous driving behaviors.


SD4FHW sample Screenshots in Low-Resolution to speed up page loading.
All actual images are High Definition Full HD 1080p 1920x1080. Click here for samples of the High Definition images.

High Definition  2.8mm  2 Megapixel Forward Road Camera screenshot. The above is a low resolution image.
All actual images are High Definition Full HD 1080p 1920x1080. Click here for samples of the High Definition images.

High Definition  12mm  2 Megapixel License Plate Capture Camera from a distance of approximately  30 feet screenshot. The above is a low resolution image. All actual images are High Definition Full HD 1080p 1920x1080. Click here for samples of the High Definition images.

High Definition  2.8mm 2 Megapixel Driver Safety Camera screenshot. The above is a low resolution image. All actual images are High Definition Full HD 1080p 1920x1080. Click here for samples of the High Definition images.

High Definition commercial in-truck video camera system  2 Megapixel Driver Safety Vehicle Video Surveillance Camera with GPS route tracing screenshot.  All in one commercial transportation video event recorder system can provide an in-vehicle black box video event data recorder with multiple cameras for full vehicle coverage.  The above is a low resolution image. All actual images are High Definition Full HD 1080p 1920x1080. Click here for samples of the High Definition images.

High Definition 12mm  2 Megapixel License Plate Capture Camera from a distance of approximately 30 feet screenshot. Transportation in-vehicle recorders with multi camera capabilities can satisfy the needs of most commercial heavy duty trucking applications that are seeking to better document driver risk activities. The above is a low resolution image. All actual images are High Definition Full HD 1080p 1920x1080. Click here for samples of the High Definition images.

High Definition 2.8mm  2 Megapixel Forward Road Camera screenshot. The above is a low resolution image.
All actual images are High Definition Full HD 1080p 1920x1080.


 Click here for samples of the High Definition images.

High Definition Mobile Video Image Samples

High Definition Mobile Video Solutions Overview


Full HD1080p High Definition Camera Choices


BTC-AF  Camera aka Black Turret Camera for 1080P systems

This camera is generically a dome camera with widespread application in school buses for recording of interior bus activities while protecting the camera with a metal vandal resistant shell. Vandal resistant qualities include built in microphone, metal shell or casing, metal shoulder and metal base for a very durable camera. Steel adjustment set screws provided making it rock solid when locked down and much less likely to be bumped out of adjustment during hostile assaults by children or in some cases prisoners as we have offered this camera to several prisoner transport services with zero complaints or damage to date. Full HD 1080p High Definition 1920x1080 2 Megapixel image quality with very wide angle 2.8 mm lens for front, rear of school bus, stairwell, driver camera offering an exceptional Field of View for interior applications in a large vehicle like school bus front camera, school bus middle camera, transit bus or train. Built in audio recording, with customer adjustable gain on audio amplifier, light sensor automatically switches the camera from color in normal ambient light to Night Vision via IR LEDS in low light environments.  10-Year Warranty Standard on all HD cameras.


SAC-AF Camera aka Stop Arm Camera for 1080P systems

This camera is for exterior applications where the customer is looking to capture images of vehicle license plates passing stopped buses in violation of Stop Arm laws regarding traffic behind or in front of school buses loading and unloading children with Stop Arm Stop Sign extended to stop traffic to help proterct children entering and exiting the school bus. Full HD 1080p High Definition 1920x1080 2 Megapixel image quality with very tight angle 12 mm lens offering an exceptional depth of field view for vehicles passing from the front or the rear. Best if used with dual camera solutions for one SAC-AF facing forward and one SAC-AF facing rear to captuire the drivers face and rear vehbicle license plate at the same time.  Light sensor automatically switches the camera from color in normal ambient light to Night Vision via IR LEDS in low light environments. 10-Year Warranty Standard on all HD cameras.

Free School Bus Stop Arm Violation Camera Upgrade for High Definition 1080p vehicle license plate citations.



Note: The SD4FH 1080P series DVRs can use any of the 720P-AHD cameras

CC-AF Ceiling Camera 360-degree Fisheye
Child Safety Ceiling Camera

Child Safety Ceiling Fisheye camera for use on the ceiling of a vehicle with polymer case with rounded edges and low profile stature that makes it less intrusive into the passenger compartment of a vehicle.  High Definition 1280x720 TVL  1MP  with a very wide angle 1.7 mm Fisheye lens that provides an exceptional wide 170-degree Field of View. The built in audio is very clear and the light sensor automatically switches the camera from color in normal ambient light to Night Vision via IR LEDS in low light environments. Those who require vandal resistant metal case should choose the BTC-A cameras listed below.
10-Year Warranty Standard on all HD cameras.

ExCAM-A Exterior  Side & Rear Turret  Camera

ExCAM-A is a weather proof IP67 rated vandal resistant‚ auto activating, infrared camera that can easily adjust to point in almost any direction‚ without need to disassemble the camera housing or worry about back reflection from the IR illuminators. It is the size and shape of a very small dome camera‚ but its versatile “turret” style system allows for faster installs and easier adjustments. ExCAM-A permits quick adaptation for Side vehicle camera with horizon leveling for proper image view, or conventional horizontal image for proper video playback from Side View camera applications. High Definition 1280x720 TVL  1MP camera10-Year Warranty Standard on all HD cameras.

PD-A Camera High Definition 720P-AHD
Named as such due to widespread application in police cars for recording of interior car activities. High Definition 1280x720 TVL  1MP  with a very wide angle 2.5 mm lens that provides an exceptional wide Field of view. The built in audio is very clear and the light sensor automatically switches the camera from color in normal ambient light to Night Vision via IR LEDS in low light environments. The heavy duty metal shell provides a much longer service life than the cheap plastic camera cases polluting the market. 10-Year Warranty Standard on all HD cameras.
